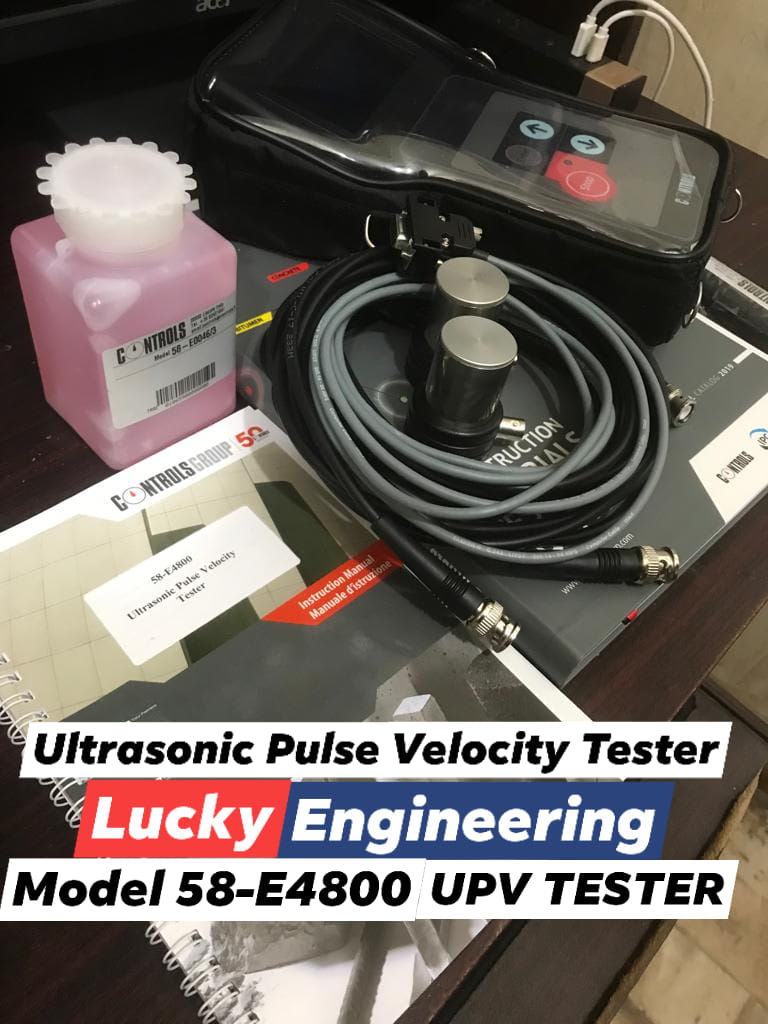

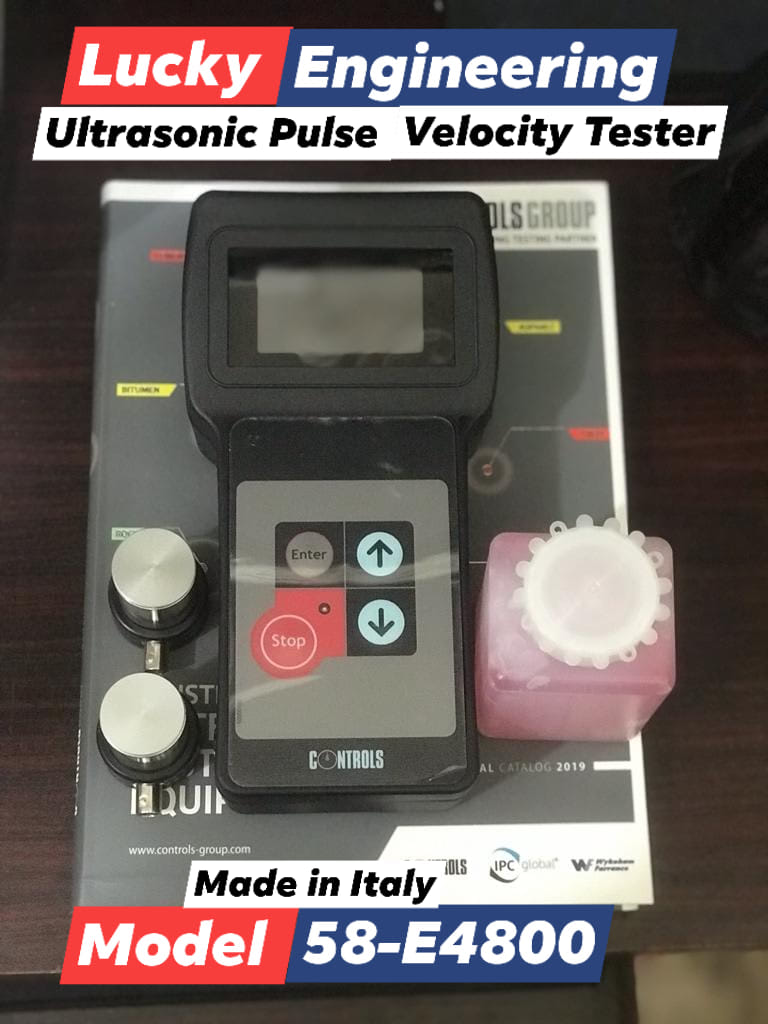

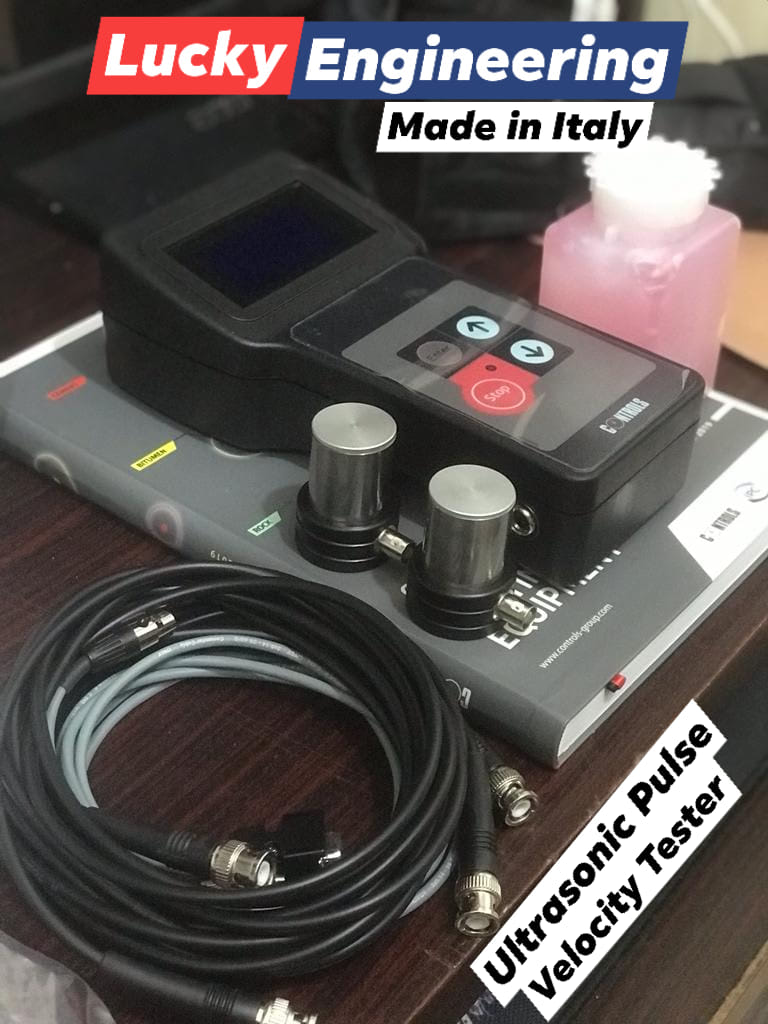

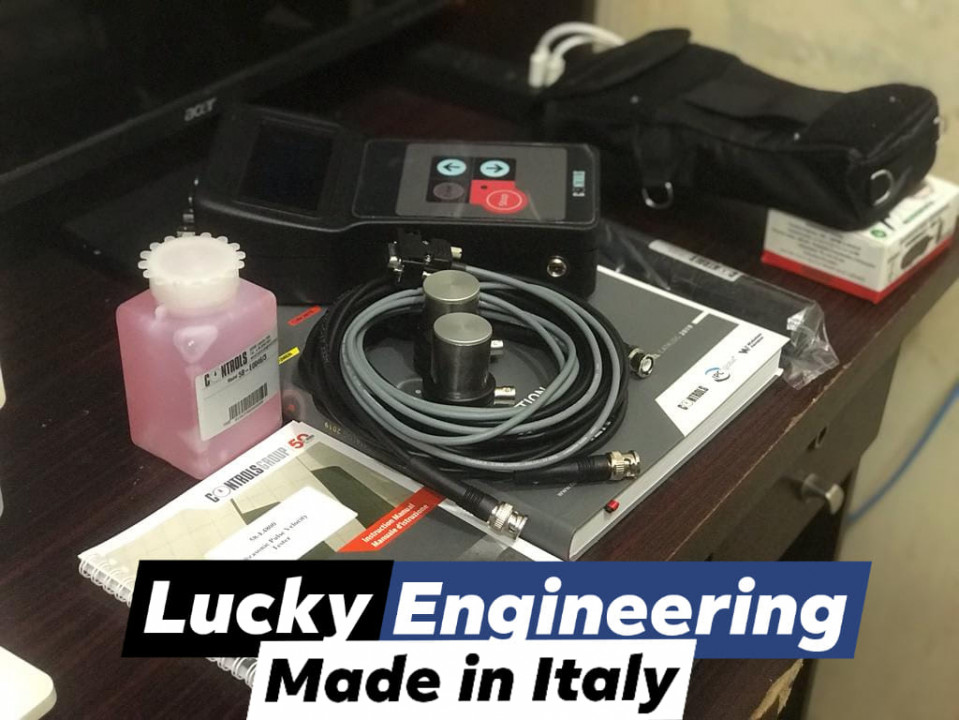

Ultrasonic Pulse Velocity Tester

PKR 450000

Machine Details

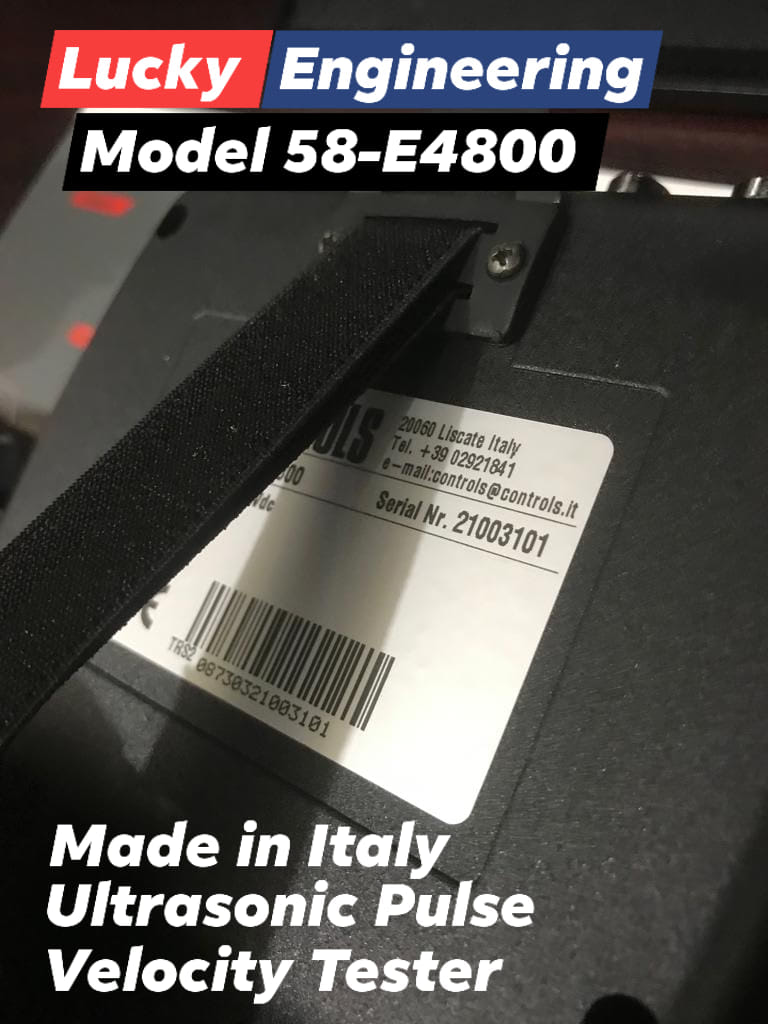

  • Manufacturer : CONTROL

  • Model : 58-E4800

  • Made In: ITALY

  • Bought Year : 2020


The 58-E4800 UPV tester is used for quality control and inspection of concrete. It measures the transit time of ultrasonic pulses through concrete for inspection of new and old structures, slabs, columns, walls, fire damaged areas, precast and prestressed beams, cylinders and other concrete forms. Combined with an oscilloscope can identify honey combs, voids, cracks and other non homogeneous conditions in concrete. Technical Specifications Microprocessor incorporated Battery operated by internal rechargeable battery pack (2400 MAh) and External charger 14 working hours using I Hz pulse rate RS 232 output for PC or printer Connectable to oscilloscope Transit time measurement from 0.1 to 1999.9 microseconds Pulse rate 1, 2, 5, 10 per second, selectable Resolution 0.1 microseconds Transmitter output 1200 V Frequency range 24 to 150 kHz Receiver imput impedance 1 MOhm Weight of the tester 0.5 kg, complete set 2.3 kg
